Surface Mount Technology
High-precision equipments and systematic process for manufacturing high-quality PCBs.
Production Process

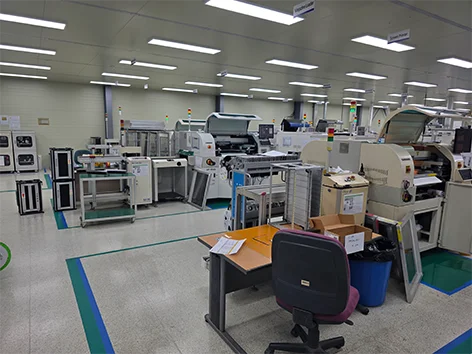

SMT Process (Parts Mounting)
-
Loader PCB Loading
-
Screen Printer Solder Paste Printing
-

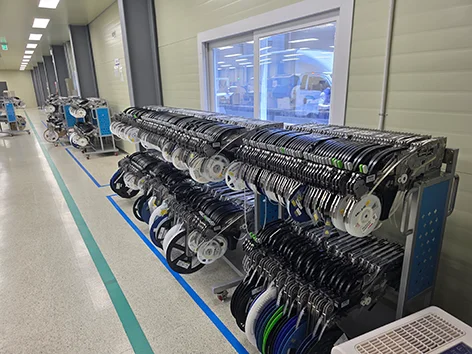

Pick & Place Parts Mounting
-
Reflow Oven Soldering
-
Unloader PCB Unloading
-
Completed PCB
Inspection Process (Inspection & Quality Control)
-

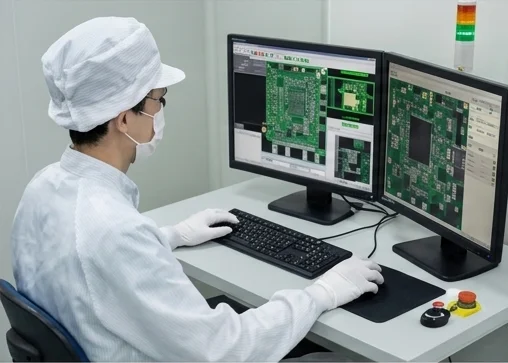

AOI (Automated Optical Inspection) Inspect completed PCBs using optical equipment to identify defects. -

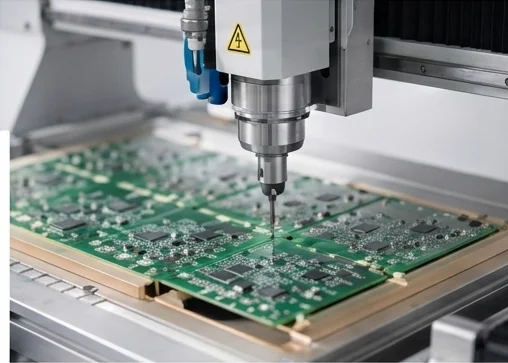

Router Cut the connected boards into individual PCBs. -

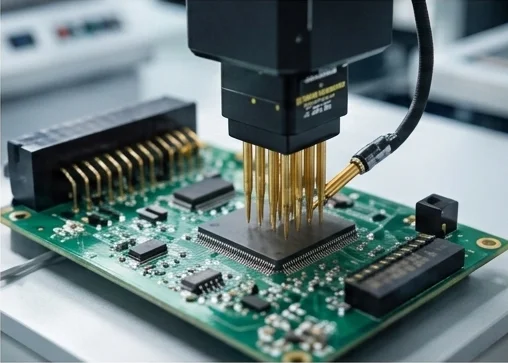

ICT (In-Circuit Test) Test electrical signals on the PCB to verify proper function. -

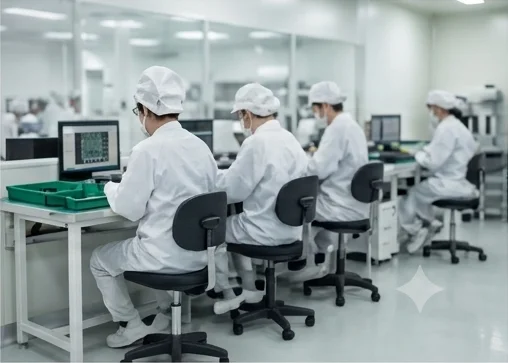

FQC (Final Quality CHeck) Determine whether PCBs meet shipping standards and certify.
Main Products (PCB Assembly)
We provide complete PCB assembly services (SMT) for a wide range of electronic products.
Core Technologies
-
SMT (Surface Mount Technology)
Mount components on the PCB with high precision to ensure stable, high-quality production.
-
PCB Design & Manufacturing
We design and manufacture various types of PCBs to provide optimal solutions for our customers.
